ISO 817 Compliant Burning Velocity Measurement Apparatus with High-Speed Camera 70,000fps and Automated Operation Software

Name: ISO 817 Compliant Burning Velocity Measurement Apparatus with HighSpeed Camera 70000fps and Automated Operation Software
Brand: KINGPO
Price: 7000 USD

Quality ISO 817 Compliant Burning Velocity Measurement Apparatus with High-Speed Camera 70,000fps and Automated Operation Software wholesale

Brand Name : KINGPO

Certification : iso9001

Place of Origin : CHINA

MOQ : 1

Price : 7000

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 30

Contact Now

IEC 60335-2-40 CL22.116.6 Burning Velocity Measurement Apparatus

Advanced testing equipment designed for precise measurement of flammable gas burning velocities with user-friendly operation and compact design.

Product Overview

The Burning Velocity Test Apparatus is engineered in compliance with ISO 817 standards for measuring the burning velocity of flammable gases mixed with air. This includes refrigerants and venting gases from lithium-ion battery thermal runaway events.

Measurement Principle

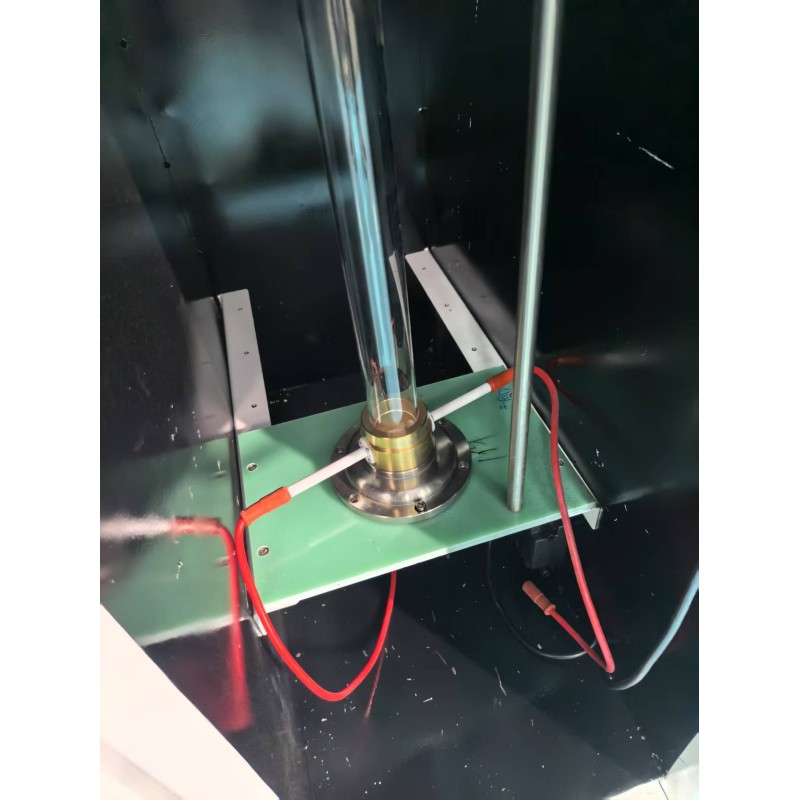

The system ignites pre-mixed gas within a specialized glass tube and captures flame propagation using high-speed camera technology. Advanced software calculates flame propagation speed and burning velocity from the recorded data.

Technical Specifications

Component	Specifications
Combustion Tube	40mm inner diameter, 1200mm length, pressure resistance >0.1MPa, high-temperature resistant
Pre-Mix Chamber	10L capacity, pressure resistance ≥1MPa
Pressure Measurement	Range: -0.1 to 0.3MPa, accuracy better than 0.05% F.S.
Ignition System	2 ignition needles with ignition transformer
Vacuum Pump	Capacity ≥1L/s for chamber evacuation
High-Speed Camera	Software-triggered, up to 70,000fps at 1280×8 pixels resolution

Key Features

Integrated operation software for gas mixing, filling, ignition, and camera activation
Automatic calculation of flame base area (af) and flame surface area (Af)
Burning velocity (Su) calculation and data export capabilities
Compact, lightweight design suitable for limited laboratory spaces
High-precision measurement for laboratory and industrial applications
Automated operation enhances test efficiency and repeatability

Applications

Burning velocity testing of refrigerants (including R152a)
Combustion characteristic analysis of lithium-ion battery thermal runaway venting gases
Research on burning velocity of various flammable gases

Data Processing Capabilities

The integrated software automatically calculates critical parameters including flame base area (af), flame surface area (Af), and burning velocity (Su). The system supports comprehensive data export and professional report generation.

Verification & Reliability

Includes verification test report for R152a burning velocity in accordance with ISO 817, ensuring measurement reliability and apparatus accuracy.

Product Images

ISO 817 Compliant Burning Velocity Measurement Apparatus with High-Speed Camera 70,000fps and Automated Operation Software
