1000x1000x1000mm IPX9K Water Spray Test Chamber 100-150mm

Product Categories

KingPo Technology Development Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1000x1000x1000mm IPX9K Water Spray Test Chamber 100150mm
Brand: KingPo
Price: 1 USD

Brand Name : KingPo

Model Number : CR-1114

Certification : Calibration Certificate

Place of Origin : China

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Supply Ability : 3 sets per month

Delivery Time : 30 working days

Packaging Details : safety carton pack or plywood box

Internal Volume : 1000*1000*1000mm

Test Water Temperature : 80±5 ℃

Spray Pressure : 8Mpa～10Mpa (adjustable)

Spray Flow : 14L/min～16L/min

nozzle qty : 4 (0°,30°,60°,90°)

Spray Distance : 100～150mm (adjustable)

Contact Now

IPX9K Water Spray Test Chamber

1.This tester is for Waterproof Ingress protection grade testing.

2. Technical Parameters

Item	Parameters
Working Volume	100010001000mm
Test Water Temperature	80±5 ℃
Spray Pressure	8Mpa～10Mpa (adjustable)
Spray Flow	14L/min～16L/min (change according to pressure)

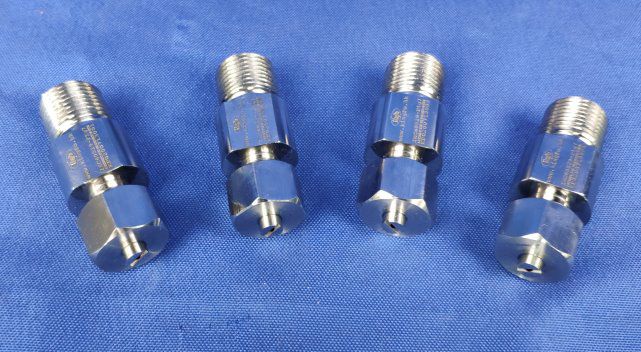

Nozzle Number	4 (0°,30°,60°,90°)
Nozzle Size	According to standard graphics, meet standards
Spray Distance	100～150mm (adjustable)
Nozzle Spay Time	0-99,9s(can be set)
Spray Sequence	Automatically switch by sequence/Manual
Turntable	φ400mm
Turntable speed	5 r/min ± 1 r/min
Turntable Lift	300mm～400mm (Manually)
Turntable loading(max)	90kg
Test Water	Recycling
Flow Meter	Electronic flowmeter (touch screen control)
Power Supply For Test Sample	Provide interface for test product,≤16A,(can customize)
Power	AC380V 50Hz ,25kw
Control Mode	PLC controller + touch screen control, inverter adjust water pressure

3.Equipment photos
