IEC 60529 IEC 60598-1 ISO 20653 Open Frame IPX9K-1000B Spray Tester

Product Categories

KingPo Technology Development Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: IEC 60529 IEC 605981 ISO 20653 Open Frame IPX9K1000B Spray Tester
Brand: KingPo
Price: 1 USD

Brand Name : KingPo

Model Number : IPX9K-1000B

Certification : Calibration Certificate

Place of Origin : China

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Supply Ability : 5 units per month

Delivery Time : 30 working days

Packaging Details : safety carton pack or plywood box

Test Water Temperature : 80±5 ℃

Spray Pressure : 8Mpa～10Mpa (adjustable)

Spray Sequence : Automatically switch by sequence/Manual

Turntable : Φ600mm, customizable

Turntable speed : 0-8 r/min, Can be set

Lifting height : 800-1700mm adjustable

Turntable loading(max) : 150kg

Flow Meter : Electronic

Water tank volume : 200L

Contact Now

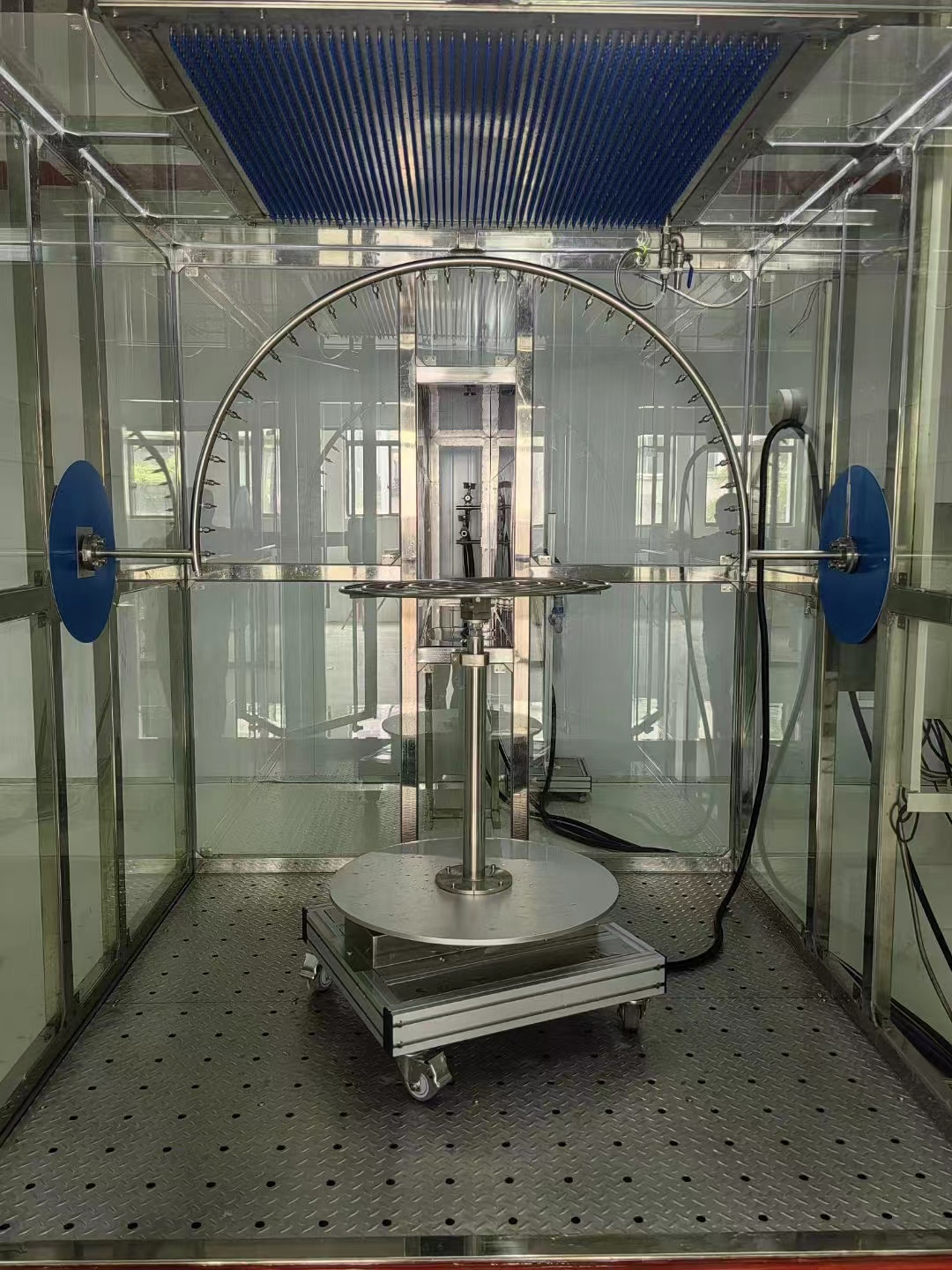

IEC 60529 IEC 60598-1 ISO 20653 Open Frame IPX9K-1000B Spray Tester, Degree Of Protection Against Water IPX9K

Technical Parameters:

Item	Parameters
Test Water Temperature	80±5 ℃
Spray Pressure	8Mpa～10Mpa (adjustable)
Spray Flow	14L/min～16L/min (change according to pressure)
Nozzle Number	4 (0°,30°,60°,90°)
Nozzle Size	According to standard graphics, meet standards
Spray Distance	0～400mm (adjustable)
Nozzle Spay Time	0-9999s(can be set)
Spray Sequence	Automatically switch by sequence/Manual
Turntable	Φ600mm customizable
Turntable speed	0-8 r/min Can be set
Lifting height	800-1700mm adjustable
Turntable loading(max)	150kg
Flow Meter	Electronic flowmeter (touch screen control)
Power Supply For Test Sample	Provide interface for test product,≤16A,(can customize)
Water tank volume	200L
Maximum size of test sample	150015001500mm
Power	AC380V 50Hz ,25kw
Control Mode	PLC controller + touch screen control, inverter adjust water pressure
stander	IEC60529,IEC60598-1,ISO20653

IEC 60529 IEC 60598-1 ISO 20653 Open Frame IPX9K-1000B Spray Tester
